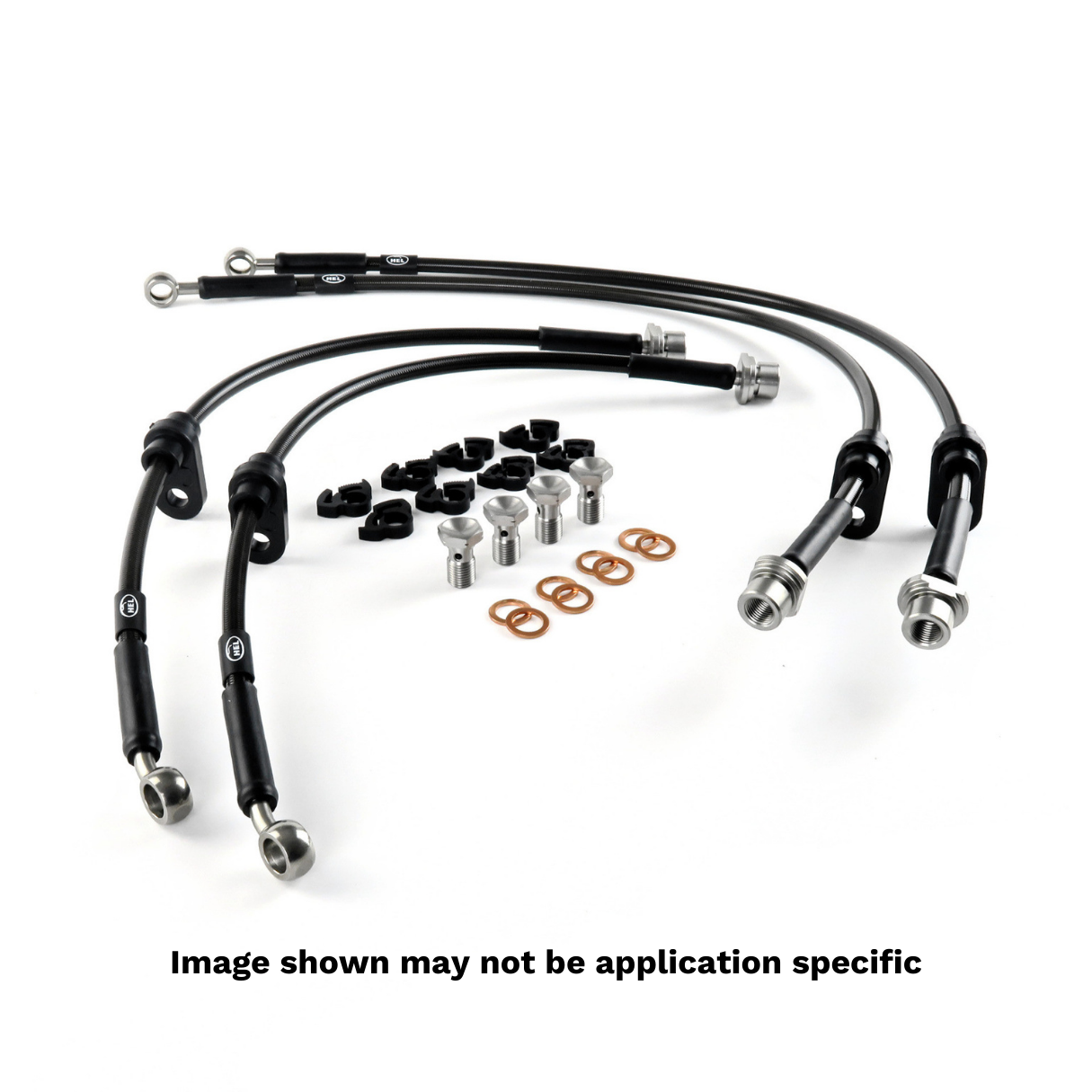

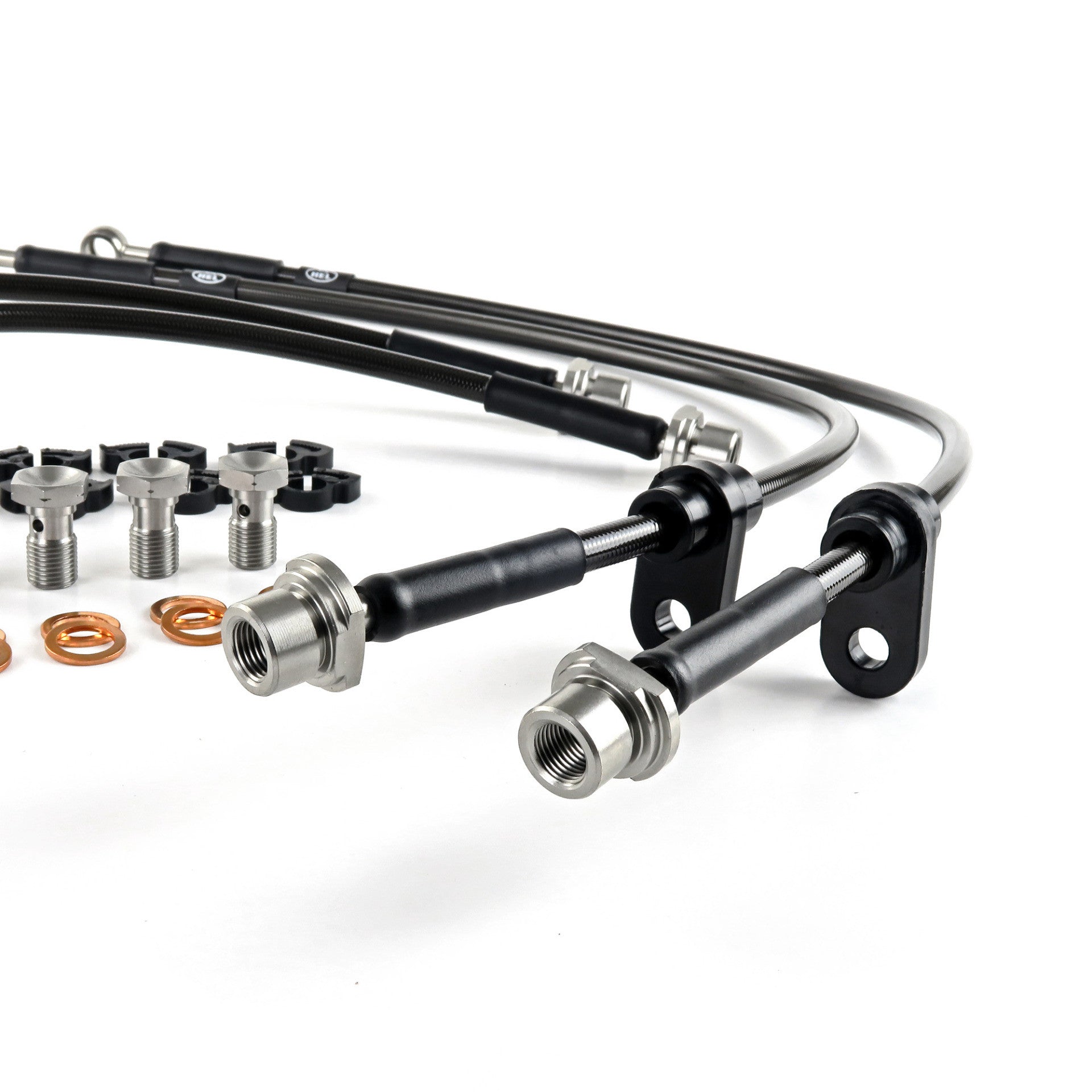

HEL Performance Brake Lines for Classic Mini Late Type Servo Kit

Here, or in person at our events, are the only places to purchase official Global Time Attack merchandise.

We offer shipping all over the world. Lead times vary, and limited edition items are pre-order only.

Standard OEM Replacements

Like for like replacements for the standard flexible brake hoses on your vehicle.

Want to see behind the scenes?

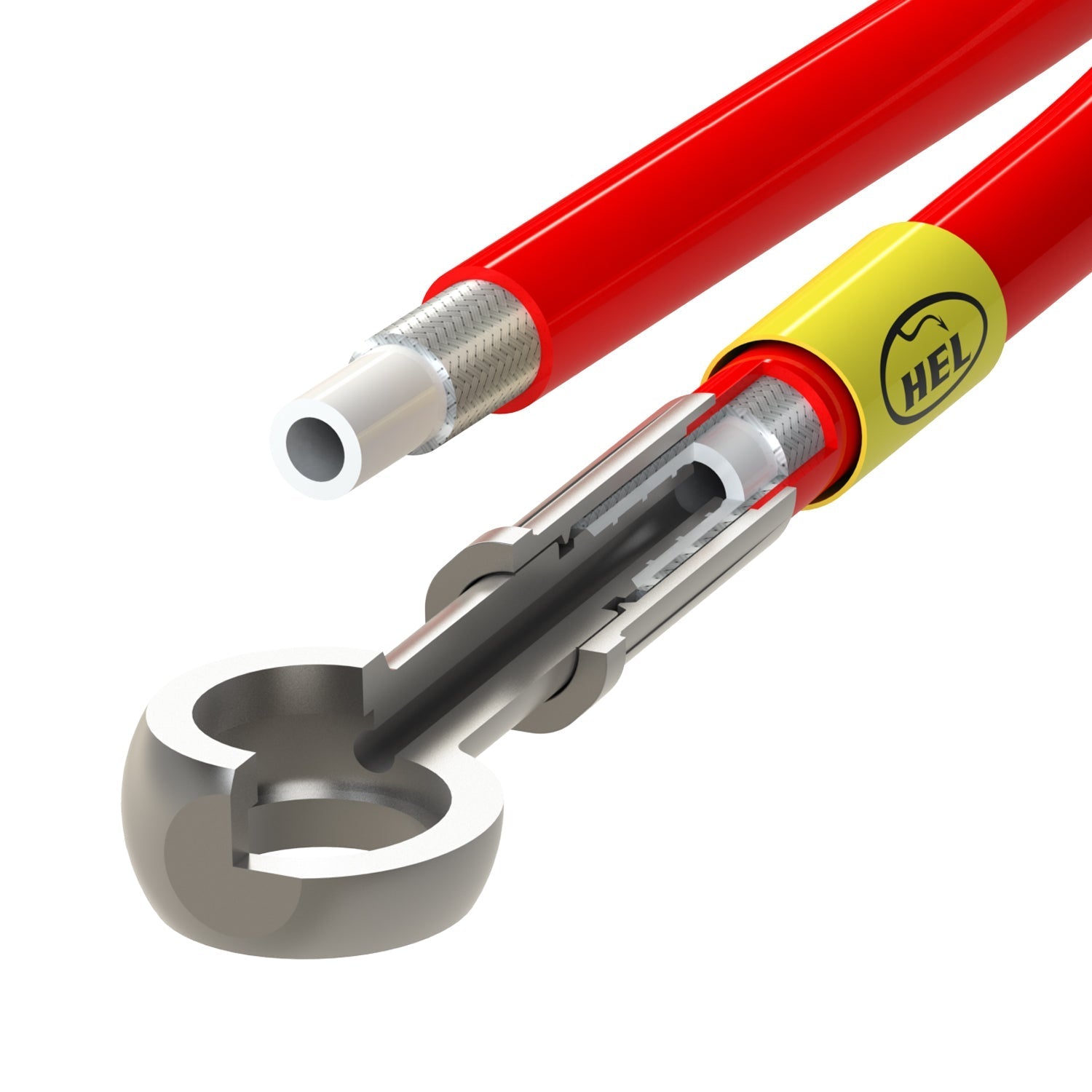

Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.

AN Hose Size	AN3, AN03, -3
Internal Diameter	3mm, 1/8"
External Diameter	8mm, 5/16"
Weight (Per Metre)	71g, 0.16lbs
Inner Material (Core)	PTFE
External Material (Overbraid)	Stainless Steel - 303/304
External Material (Outer)	PVC (Transparent or Colored)
Fitting Material (Hose End)	Stainless Steel - 303/304
Minimum Temperature	-70°C -94°F
Maximum Temperature	250°C, 482°F
Operating Pressure	4206 PSI, 290 BAR
Burst Pressure	12618 PSI, 870 BAR
Minimum Bend Radius (90°)	19mm, 0.7"
Fluid Compatibility	Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT)
Brand	HEL Performance
