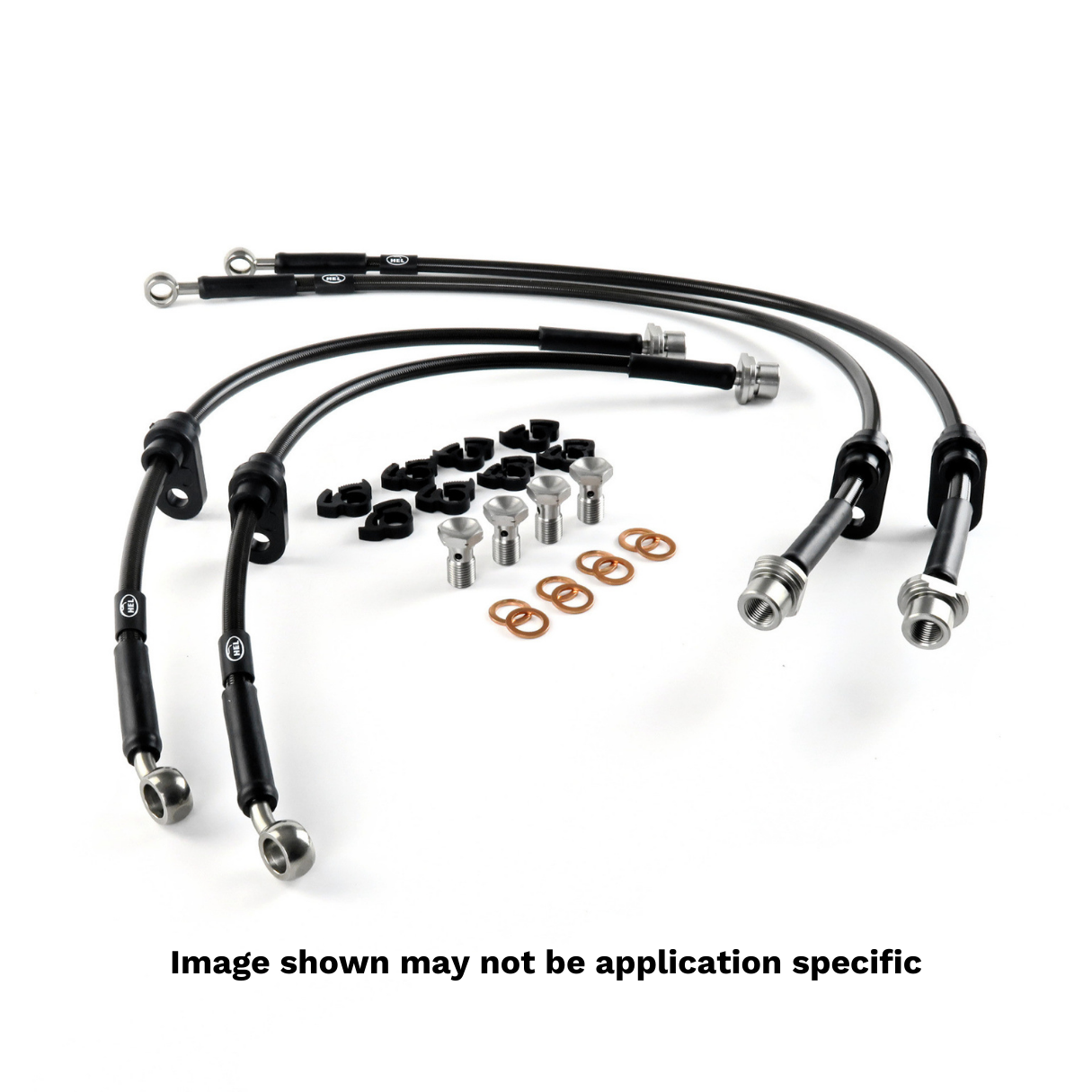

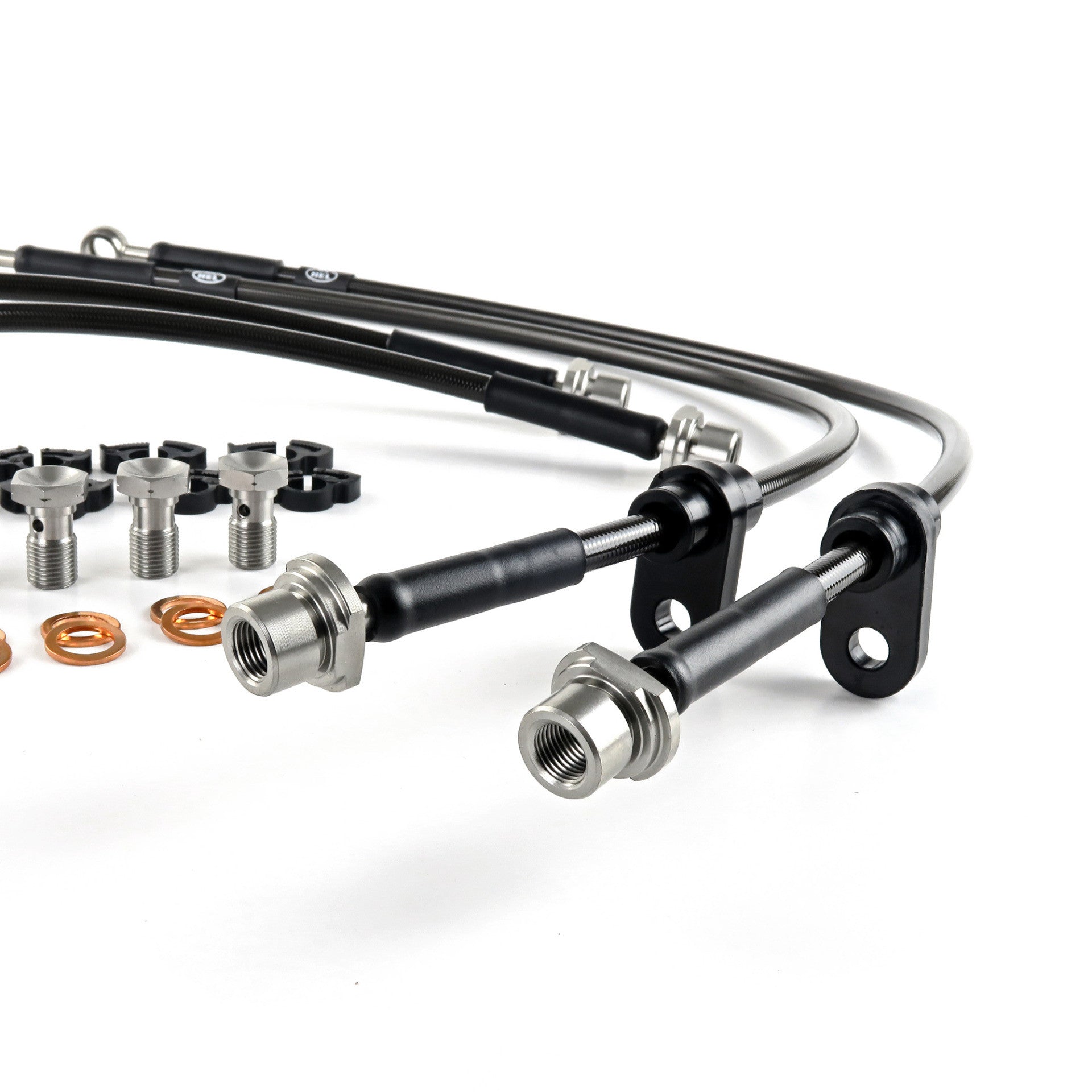

HEL Performance ABS Line Replacements for BMW 7 Series E38 All Models 1994-2002, Stainless Steel Braided

$105.86
A common failure point on this model. This kit replaces the two rubber hoses that run from...
$105.86

A common failure point on this model. This kit replaces the two rubber hoses that run from the ABS pump to the rear hard line. We advise to replace these before serious brake failure occurs.

Replaces OEM part numbers 34321162616 and 34321162612.

The difference between winning and losing is a very fine line...

On every mile of every race track the importance of high performance precision braking control has been proven. Total feel and response give you the confidence you need on the road. The difference between an average driver and a great driver is those who can control speed and those who cannot. Speed is nothing without control and it's a very fine line - Which is why HEL Performance only supply very fine lines.

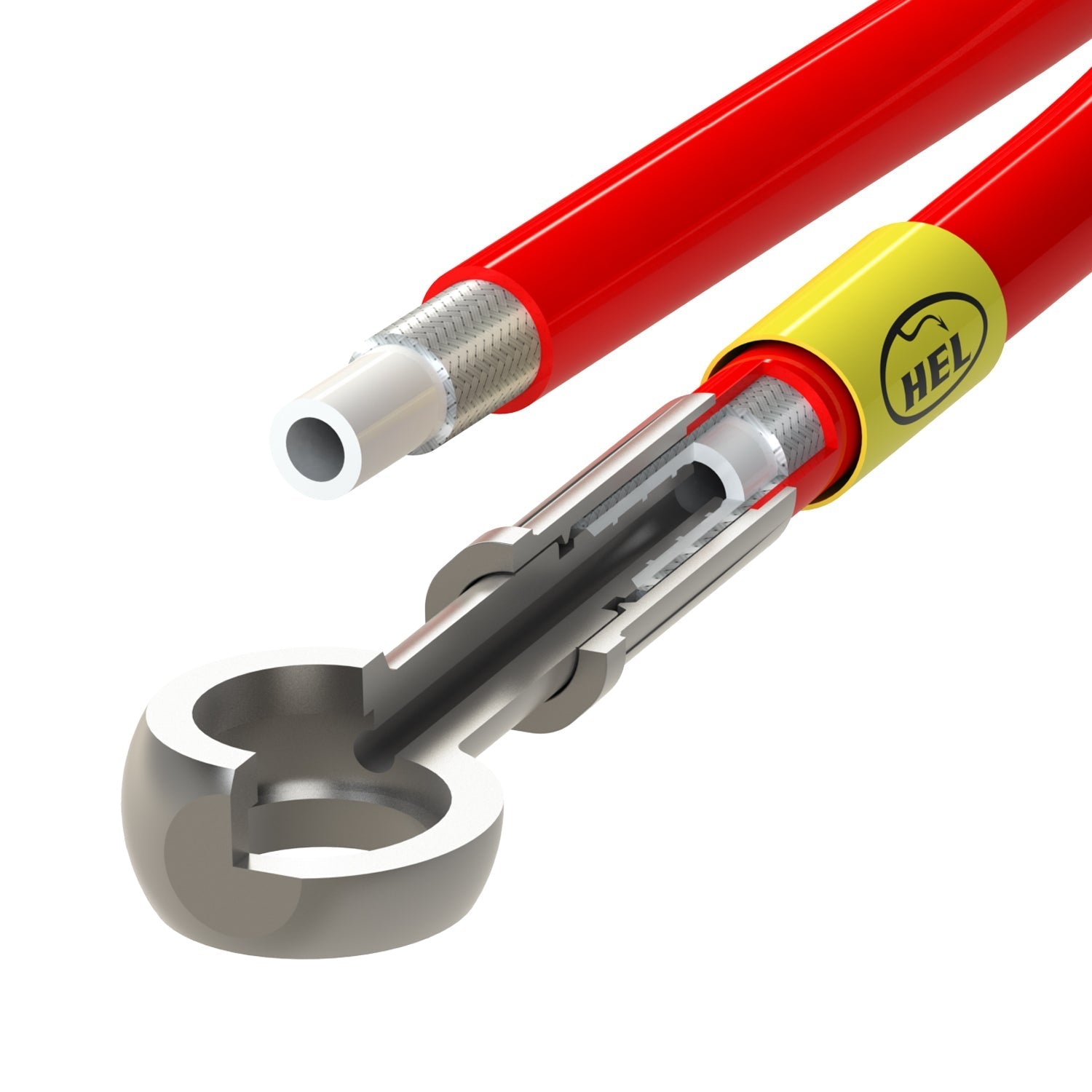

Each HEL Performance brake line kit is assembled in-house from the finest quality stainless steel fittings swaged directly to hard drawn tensile stainless steel braided hose.

With our extensive automotive listings the complete kit will be manufactured to exact specifications, guaranteeing the look, the quality and the performance you demand.

HEL Brake line kits eliminate that 'spongy' feeling often found with rubber hoses under extreme braking conditions - the time when performance is needed the most. By replacing the original rubber hoses with our complete system you will remove this sponginess and your braking will deliver new levels of precision.

Don't risk using inferior brake lines when you can trust us to improve braking reliability and performance - We use stainless steel in our lines and our fittings. Most competitors use zinc plated fittings which are at risk from corrosion.

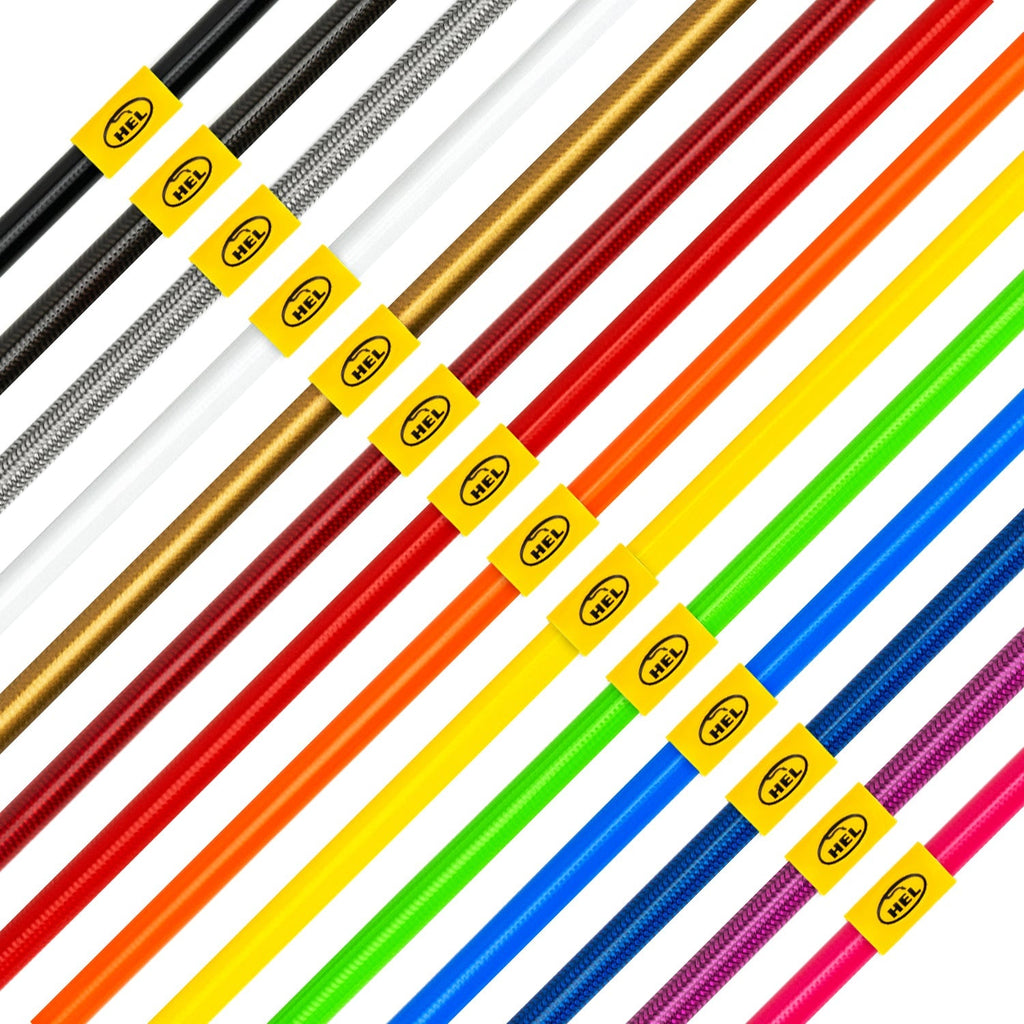

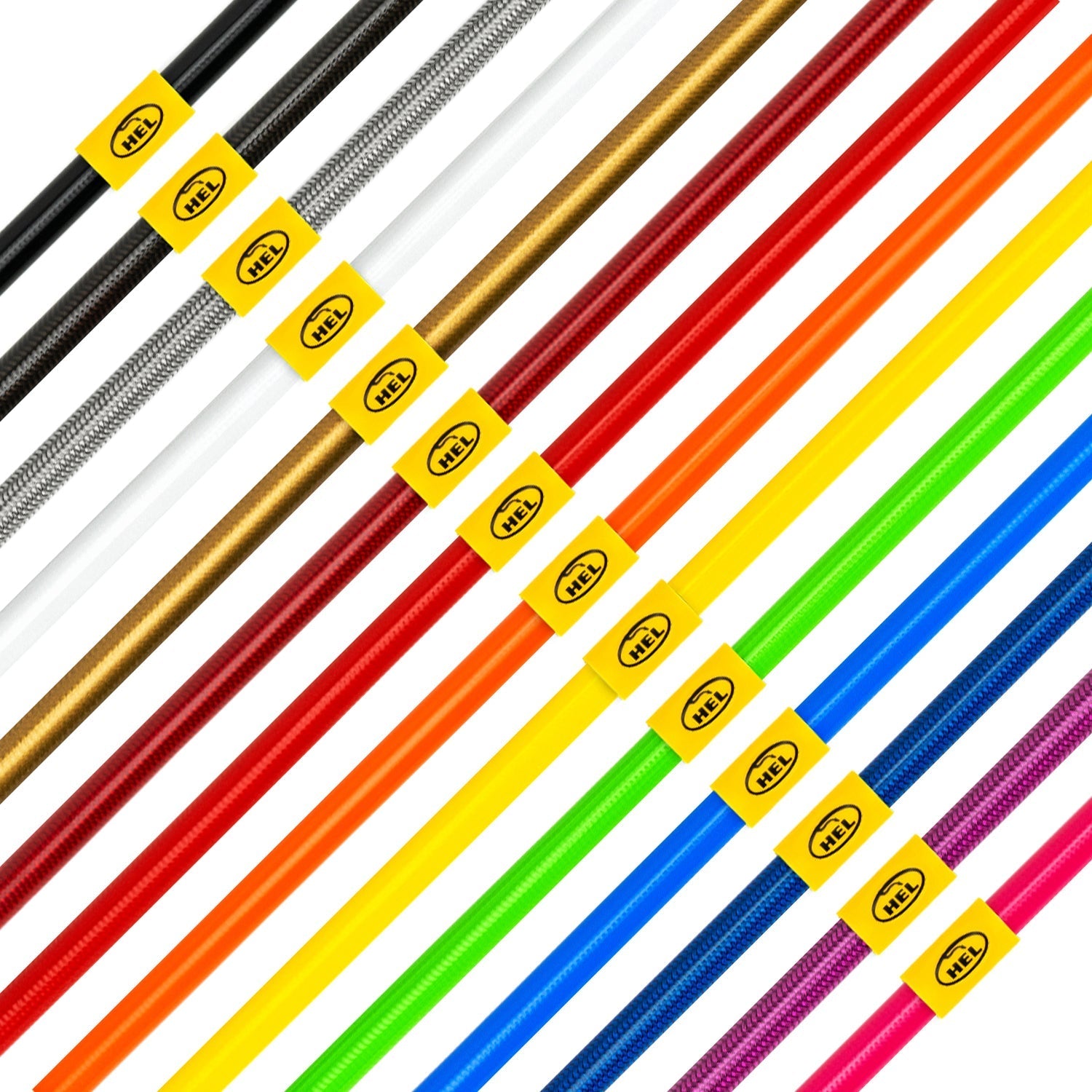

Choose your color and click 'add to basket' to order your brake lines.

What's Stopping You?

Standard OEM Replacements

Like for like replacements for the standard flexible brake hoses on your vehicle.

Want to see behind the scenes?

Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.

Hose Specifications
AN Hose Size AN3, AN03, -3
Internal Diameter 3mm, 1/8"
External Diameter 8mm, 5/16"
Weight (Per Metre) 71g, 0.16lbs
Inner Material (Core) PTFE
External Material (Overbraid) Stainless Steel - 303/304
External Material (Outer) PVC (Transparent or Colored)
Fitting Material (Hose End) Stainless Steel - 303/304
Minimum Temperature -70°C -94°F
Maximum Temperature 250°C, 482°F
Operating Pressure 4206 PSI, 290 BAR
Burst Pressure 12618 PSI, 870 BAR
Minimum Bend Radius (90°) 19mm, 0.7"
Fluid Compatibility Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT)
Brand HEL Performance
